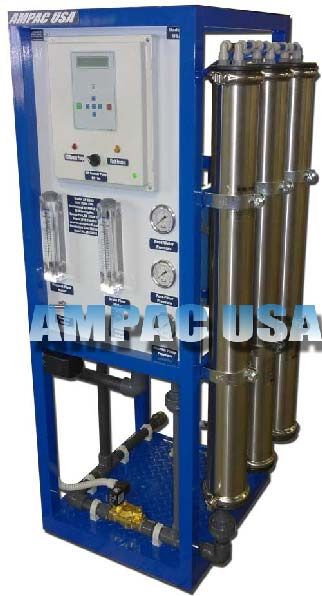

Commercial Reverse Osmosis 4500 GPD | 17,000 LPD

The AMPAC USA Commercial Reverse Osmosis  4500GPD/17000LPD| APRO4500  is the result of 28 years of experience with the needs and requirements of commercial pure water users. The key factors are reliability, serviceability, and consistent performance with minimum user intervention are achieved in the robust design of the AMPAC USA Reverse Osmosis Systems.

The AMPAC USA 4500 Gallons RO System is designed for Free Standing Applications, to allow flexibility in accommodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further simplifies installation and service. Most importantly, all our models incorporate the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film Membrane Elements to provide the most extended-term performance expected by commercial users.  The welded Aluminum Frame with the Aluminum Diamond Plate allows easy access to all major system components.

Standard Features:

•    Spin Down Screen Filter with Manual Flush Valve
•    Silica quartz Pre-Filter w/auto-backwash valve
•    4” x 20” Big Blue Sediment Pre-Filter 20 Micron
•   4” x 20” Big Blue Sediment Pre-Filter 05 Micron
•    Horizontal Rotary Vane High-Pressure Jet Pump with Safeguards for Brackish Water Application
•    Triple 4” x 40” FRP Pressure Vessels
•    Triple 4” x 40” TFC Membrane Element
•    Complete Panel for Easy Controls
•    3 Count Stainless steel liquid-filled pressure gauges
•    Permeate and concentrate flowmeters
•    Inlet Solenoid Valve with Bypass
•    Low pressure cut off Pressure Switch
•    Stainless Steel System Pressure Control
•    Stainless Steel Recycle Pressure Valve
•    On/Off Main Power Switch.
•    Powder-coated, Welded Aluminum Frame with Aluminum Diamond Plate.

Optional Features:

•      Automatic Operating Programmable logic controller UL/CE Approved with:
  • Smart Relay
  • Delayed start-up of the high-pressure pump
  • Inlet Solenoid Valve
  • Low & High Feed Pressure Switch Controls
  • Supply & Delivery Pumps Controls
  • R/P Storage Tank Full Pump on/off
  • Auto Flush Cycle
  • Pre-Treat Lockout
  • TDS/Conductivity Monitor
  • Temperature Monitor
  • Hour Meter
•      Ion Exchange Water Softener w/auto-backwash valve
•      Multimedia KDF-Catalytic Carbon-Poly Phosphate Pre-Filter w/auto-backwash valve
•      Anti-Scalant Dosing System (Hard Water Present Conditions)
•      Chlorine Dosing System (Iron Manganese Present Conditions)
•      Smart-on-Demand Delivery (Distribution) Pump to the point of Use 2HP.
•      4” x 10” Big Blue Carbon Post-Filter 05 Micron
•      Ultra Violet Sterilizer
•      Smart-on-Demand Supply Pump to increase Feed Water Pressure 1HP
•      Ozone Generator Disinfection System Installed on Circulation Loop.

System Features:

Make of System: Fully Automated Turnkey Water Purification System including pre-treatment Modules and Reverse Osmosis System fully built on a Powder Coated Welded Aluminum Skid with Diamond Plate Base using good industrial practice and following manufacturer’s guidelines for every component.

Make of System: AP4500

Origin:  Made in the USA

Backwash & Regenerations Cycle: Ion Exchange System Cycle on Metered Basis, Multimedia System Cycle on Timer Basis, and can be Adjustable up to 120 Minutes at any given time.

Delivery Terms: The RO System is ready to be crated and shipped, on average, 2-3 weeks from the day of receipt of the purchase order.

System production is based on the following conditions: 10,000ppm NaCI feed water, 77°f/ 25°c Operating temperature, and 3.0-11.0pH Range.  Actual feed water analysis may require special consideration affecting final design and pricing.
