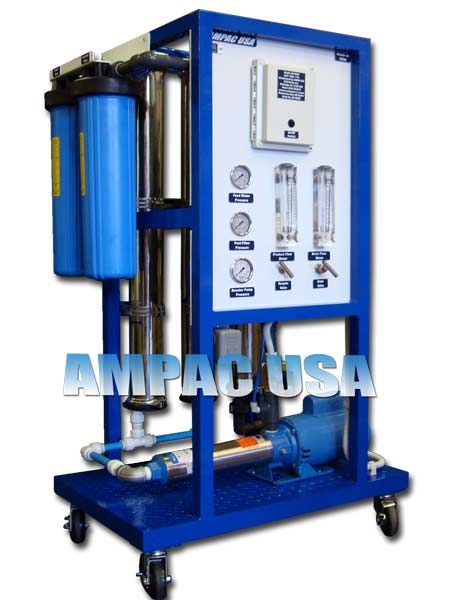

Commercial Reverse Osmosis 8000 GPD | 30,000 LPD
Brand: Ampac USA
Product Code: APRO8000
Made in USA
The AMPAC USA Commercial Reverse Osmosis 8000 GPD | APRO8000 is the result of 28 years of experience with the needs and requirements of commercial pure water users. The key factors are reliability, serviceability, and consistent performance with minimum user intervention are achieved in the solid design of the Ampac USA Reverse Osmosis Systems.
Standard Features:
- Spin Down Screen Filter with Manual Flush Valve
- Silica quartz Pre-Filter w/auto-backwash valve
- Twin 4” x 20” Big Blue Sediment Pre-Filter 5 Micron (in Parallel)
- Horizontal Rotary Vane High-Pressure Jet Pump with Safeguards for Brackish Water Application
- Four Count 4” x 40” FRP Pressure Vessels
- Four Count 4” x 40” TFC Membrane Element
- On/Off Main Power Switch.
- Stainless Steel Recycle Pressure Valve
- Stainless Steel System Pressure Control
- Low pressure cut off Pressure Switch
- Inlet Solenoid Valve with Bypass
- Permeate and concentrate flowmeters
- 4-Count Stainless steel liquid-filled pressure gauges
- Complete Panel for Easy Controls
- Powder-coated, Welded Aluminum Frame with Aluminum Diamond Plate.
Optional Features:
- Automatic Operating Programmable logic controller UL/CE Approved with:
- Smart Relay
- Delayed start-up of the high-pressure pump
- Inlet Solenoid Valve
- Low & High Feed Pressure Switch Controls
- Supply & Delivery Pumps Controls
- R/P Storage Tank Full Pump on/off
- Auto Flush Cycle
- Pre-Treat Lockout
- TDS/Conductivity Monitor
- Temperature Monitor
- Hour Meter
- Ion Exchange Water Softener w/auto-backwash valve
- Multimedia KDF-Catalytic Carbon-Poly Phosphate Pre-Filter w/auto-backwash valve
- Anti-Scalant Dosing System (Hard Water Present Conditions)
- Chlorine Dosing System (Iron Manganese Present Conditions)
- Smart-on-Demand Delivery (Distribution) Pump to Point of Use 2HP.
- 4” x 10” Big Blue Carbon Post-Filter 05 Micron
- Ultraviolet Sterilizer
- Smart-on-Demand Supply Pump to increase Feed Water Pressure 1HP
- Ozone Generator Disinfection System Installed on Circulation Loop.
System Features:
| Powder-Coated Aluminum w/Diamond Plate |
| (4) ea TFC 4" x 40" |
| 4" x 40" Stainless Steel or FRP |
| Goulds Multi-Stage Jet Pump with Safeguards (SS option) |
| Pre-Filter PSI, Post-Filter PSI, Booster Pump PSI |
| System Pressure, Recycle Pressure |
| Low PSI Cutout, Tank Full Cutout |
| 110V/220V,380V/440V - 50/60 Hz, 1 phase or 3 phase |
| 3 Hp - 1725 rpm |
| 1" Quick Tubing Connectors |
| 5.6 gal per min - 8,000 gals per day |
| 21.0 Liters per min - 30,290 Liters per day |
| 170 - 225 psi |
| 33% - 75% |
| 99% |
| 2500 ppm - 15 grains For Municipal Water Design |
| 10,000 ppm - 25 grains For Brackish Water Design |
| 113 degrees F |
| 2-11 |
| less than 0.1 ppm |
| 36" wide x 18" deep x 57" ht. |
| 200 Lbs. / 91 Kgs. |
Make of System: Fully automated Turnkey Water Purification System including pre-treatment Modules and Reverse Osmosis System fully built on a Powder Coated welded Aluminum Skid with Diamond Plate Base using good industrial practice and following manufacturer’s guidelines for every component.
Make of System: AP8000
Origin: Made in the USA
Backwash & Regenerations Cycle: Ion Exchange System Cycle on Metered Basis, Multimedia System Cycle on Timer Basis and can be Adjustable up to 120 Minutes at any given time.
Delivery Terms: The RO System is ready to be crated and shipped, on average 2-3 weeks from the day of receipt of the purchase order.
System production is based on the following conditions: 10,000ppm NaCI feed water, 77°f/ 25°c Operating temperature, and 3.0-11.0pH Range. Actual feed water analysis may require special consideration affecting final design and pricing.
