Commercial Turnkey Reverse Osmosis 1,500 GPD | 5.7m3/Day
Brand: Ampac USA
Product Code: AP1500-LX
Made in USA

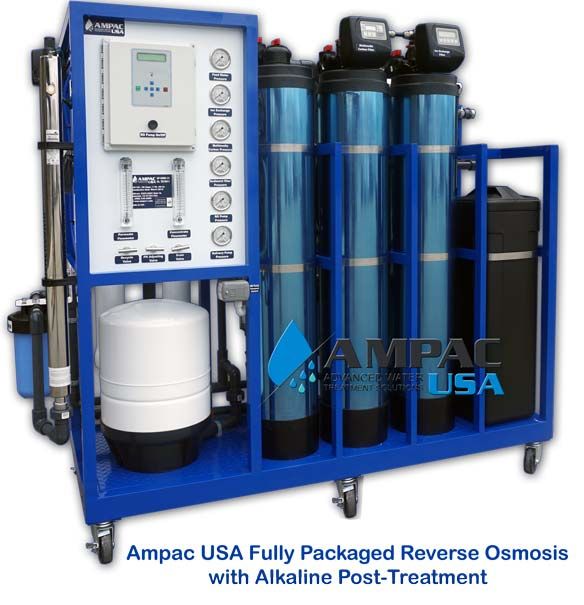

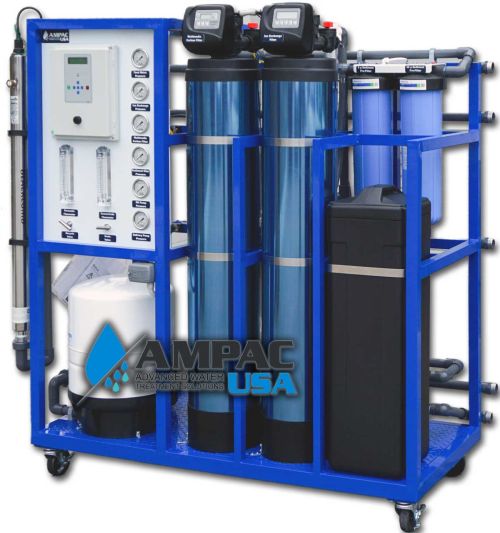

The AMPAC USA Fully Equipped Commercial Turnkey Reverse Osmosis 1500 GPD| 5.7m3/day | AP1500-LX is a Turnkey Reverse Osmosis System. These are especially well known for their reliability, serviceability, and consistent performance with minimum user intervention. These key factors are achieved with its solid design. The frames are built by Powder Coated Welded Aluminum. Stainless Steel pressure vessels and fastening hardware provide the structural strength and corrosion resistance required for a commercial appliance.
This Brackish Water Reverse Osmosis Commercial watermakermodel incorporates the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film Membrane Elements to provide the RO Systems design is optimized for Free Standing applications. This allows flexibility in accommodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further facilitates easier installation and service. Most importantly, every AMPAC USA RO Systems The long term performance expected by commercial users.

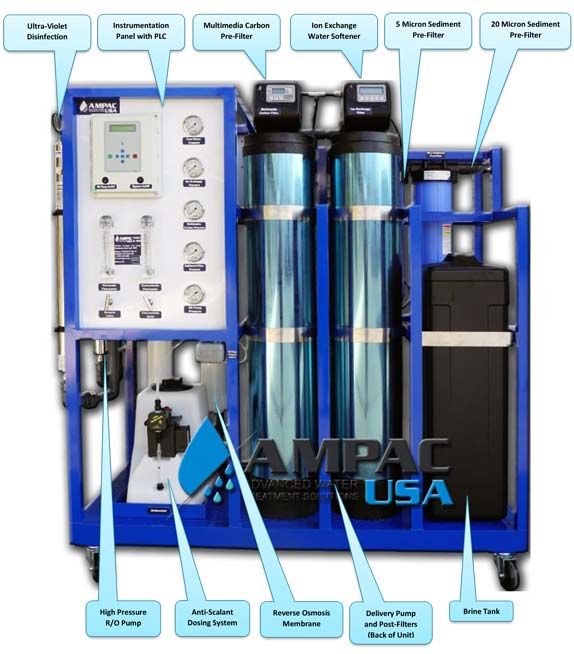

The Welded Aluminum Frame with the Aluminum Diamond Plate allows easy access to all major system components.
Standard Features:
|
Intrumentations:
|
Optional Features:
|
RO System Features:
| Powder Coated One Piece Aluminum w/Diamond Plate |
| (1) ea TFC 4" x 40" |
| 4" x 40" Stainless Steel |
| Procon Rotary Vane with Safeguards (SS option) |
| Pre-Filter PSI, Post-Filter PSI, Booster Pump PSI |
| System Pressure, Recycle Pressure |
| Low PSI Cutout, Tank Full Cutout |
| 110 or 220 V, 50 or 60 Hz, 1 phase |
| GE 3/4 Hp - 1725 rpm |
| 1/2" Quick Tubing Connectors |
| 1.04 gal per min - 1,500 gals per day |
| 4.0 Liters per min - 5,760 Liters per day |
| 170 - 225 psi |
| 33% - 50% |
| 98.5 - 99.9% |
| 2500 ppm - 15 grains For Municipal Water Design |
| 10,000 ppm - 25 grains For Brackish Water Design |
| 113 degrees F |
| 2-11 |
| less than 0.1 ppm |
| 60" wide x 24" deep x 57" ht. |
| 750 Lbs. / 340 Kgs. |
Make of System: Fully automated Turnkey Water Purification System including pre-treatment Modules and Reverse Osmosis System fully built on a Powder Coated Welded Aluminum Skid with Diamond Plate Base using good industrial practice and following manufacturer’s guidelines for every component.
Model of System: AP1500-LX
Origin Made in USA
Backwash & Regenerations Cycle: Ion Exchange System Cycle on Metered Basis, Multimedia System Cycle on Timer Basis and can be Adjustable up to 120 Minutes at any given time.
Delivery Terms: System is ready to be created and shipped, on average 2-3 Weeks from the day of receipt of purchase order.
*Prices are subject to change without notice.
