Emergency Portable Brackish Water Reverse Osmosis 500GPD | EP-500
Brand: Ampac USA
Product Code: EP-500
Made in USA

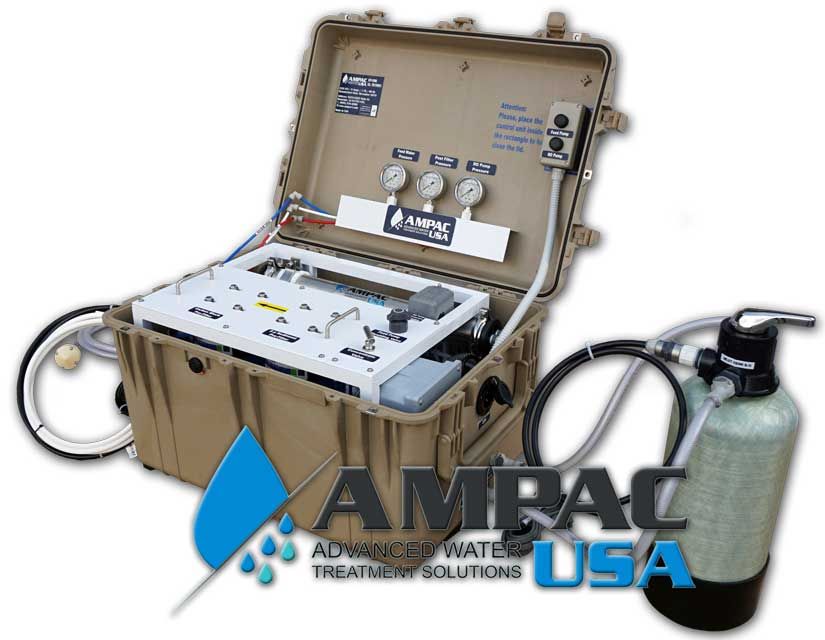

The AMPAC USA™ Emergency Portable Reverse Osmosis 500 GPD | EP-500 is an Emergency Portable Reverse Osmosis Unit that has been specifically designed for Disaster Preparedness applications, where a large amount of pure drinking water is required at the cheapest running costs. The EP-500 will Produce up to 21 GPH (Gallons per Hour) of Pure water.
Standard Features:
|
System Features:
| Enclosure | Pelican Case 28" x 20" x 18" |
| Membranes | (1) ea TFC 4" x 14" |
| Vessels | 4" x 14" SS |
| Pump | Rotary Vane with Safeguards (SS option) |
| Gauges - Glycerin Filled | Feed Pressure & Booster Pump PSI |
| Valves | System Pressure |
| Switches | Low-Pressure Cutout, High-Pressure Cutout |
| Electrical | 110 or 220 V, 50 or 60 Hz, 1 phase |
| Motor | 1/2 Hp - 1725 rpm |
| Connections | 1/2" Quick Tubing Connectors |
| Capacity per US Gallon | 21 gal per hr - 500 gals per day |
| Capacity per Liters | 80 Liters per hr - 1,890 Liters per day |
| Operating Pressure | 170 - 225 psi |
| Typical Recovery | 40% - 75% |
| Typical Rejection | 99.2% |
| Max Feed TDS - Hardness | 2500 ppm - 15 grains For Municipal Water Design |
| Max Feed TDS - Hardness | 10,000 ppm - 25 grains For Brackish Water Design |
| Max Feed Temp | 113 degrees F |
| Feed pH Range | 3 -11 |
| Max Chlorine | less than 0.1 ppm |
| Dimensions | 28" wide x 20" deep x 18" ht. |
| Weight | Approx. 75 Lbs | 34 Kg. |
