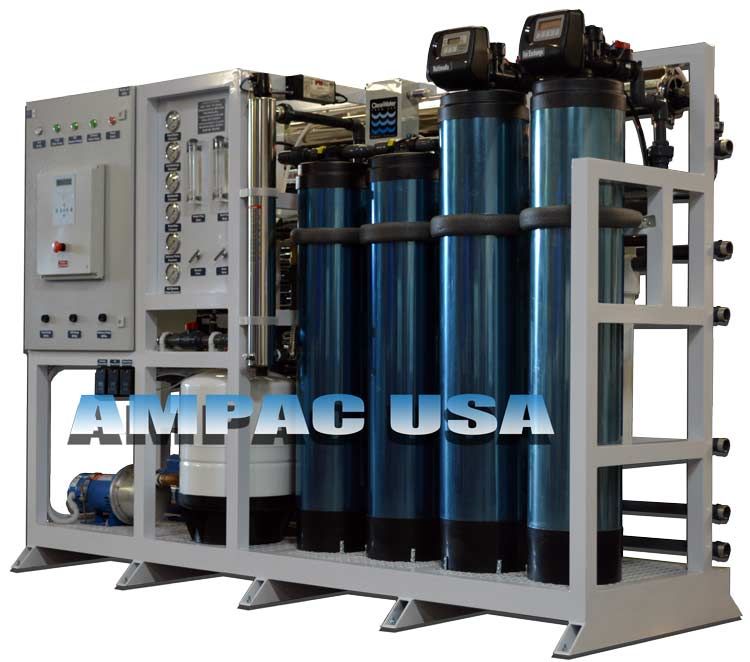

Industrial Reverse Osmosis 8,000 GPD | 30.2m3/Day

The AMPAC USA Industrial Reverse Osmosis 8,000 GPD | AP8000-LX is a Superior Water Store Reverse Osmosis (RO) system that is designed and custom built specifically to meet our Clients requirements and specifications for water store applications were reliable higher purity water and higher efficiency is needed. The AP8000-LX comes with everything you need for the best water quality a water store can have, this reverse osmosis system is a complete water purification factory, it includes all necessary pre-treatment, RO, and post treatment to ensure the highest drinking water quality. Please call AMPAC USA to find the Reverse Osmosis system that works best for your process or application

Standard Features:

• Stage   1:  Chlorination Process for Well Water Application to disinfect water supply
• Stage   2:  Spin Down Auto Flush Screen Pre-Filter to remove all suspended solids up to 20 micron
• Stage   3:  Ion Exchange Water Softener with Auto Regeneration Valve to remove Calcium, Magnesium, Lead & Iron making the water soft water
• Stage   4:  Multimedia Carbon Pre-Filter with Auto Backwash Valve to absorb bacteria, chlorine, chemicals, organic matters and contaminants, improving taste, odor and clarity.
• Stage   5:  20" Sediment Pre-Filter 20 Micron to remove any suspended solids up to 20 micron
• Stage   6:  20" Sediment Pre-Filter 5 Micron to remove any suspended solids up to 5 micron
• Stage   7:  High-Pressure Stainless Steel Pump to increase feed water pressure to 225 PSI
• Stage   8:  Low Fouling TFC High Flow Membrane Element to remove all dissolved solids
• Stage   9:  Smart on-Demand Delivery Pump to draw Permeate Product Water from Water Storage Tank and repressurize the delivery line
• Stage 10:  Alkaline Post-Filter: to adjust pH to the desired level as well as to improve Taste, Odor, and Clarity of the Permeate Water
• Stage 11:  Stainless Steel Ultra Violet Sterilizer to disinfect and sanitize permeate pure drinking water
• Stage 12:  Ozone Generator with Injector, Mixing Tank and Timer to Recirculate Permeate Stored Tank staying pure.

Instrumentations:

• Automatic Operating Programmable logic controller UL/CE Approved with:
  • Smart Relay
  • Delayed start-up of high-pressure pump
  • Inlet Solenoid Valve
  • Low & High Feed Pressure Switch Controls
  • Supply & Delivery Pumps Controls
  • R/P Storage Tank Full Pump on/off
  • Auto Flush Cycle
  • Pre-Treat Lockout
  • TDS/Conductivity Monitor
  • Temperature Monitor
  • Hour Meter
• Panel Mount Digital TDS Water Quality Monitor
• Stainless Steel / Liquid Filled Pressure Gauges
• Permeate (Product) Flow Meter
• Concentrate (Waste) Flow Meter
• Stainless Steel System Pressure Control
• Stainless Steel Recycle Valve Control
• Quick Disconnect Fittings
• All Electrical Components UL/CE Certified
• All Water and Plumbing Components are NSF Certified

Optional Features:

• Alkaline Water Generator
• pH Monitor to adjust Alkalinity Level
• Smart on -Demand Feed Supply Pump
• Water Meter Accumulator

Make of System: Fully Automated Turnkey Water Treatment System including Pre-Treatment Modules, Reverse Osmosis and Post-Treatment Modules fully built on a Fully Welded, Powder Coated Aluminum Skid with Diamond Plate Base using good industrial practice and following guidelines for every component.

Model of System: AP8000-LX, System to produce 8,000 GPD (5.6 GPM) / (30,280 LPD) Liters per day

Delivery Terms:  3-4 Weeks from the day of receipt of formal purchase order and Initial Deposit.

Dimensions: 120” L x 34” W x 72” H   Approx. G.V.W.R. including RO System: 2450lbs

Manufactured by: AMPAC USA

Origin: Made in USA

Functional Specifications: Complete functional specification shall be provided which describes:
    1)  Operation of unit
    2)  Control loops
    3)  Interlocks
    4)  Alarms
    5)  Startup/Shutdown sequences
    6)  Security

System Safety:

The equipment and system shall be designed considering minimizing the hazard.  Countermeasures against the system hazard are as follows:

Electrical Safety Devices:

•      System will be equipped with a 3 Pole Sensor Breaker
•      Instrumentations will be equipped with a Single Phase Breaker and 2 Fuses
•      Alarm Horn - Alarm Conditions: Low feed pressure & High permeate conductivity
•      Unit Shutdowns include:
  • Low feed pressure
  • Pretreatment filters in backwash
  • Product storage tank full
  • High permeate conductivity

Water Safety device:

•      Low Pressure Sensor
•      High Pressure Diverter Valve

Monitoring and control devices for system safety:

•      LCD Display Screen showing Conductivity, Hour Meter, and Temperature
•      On-Off Push Buttons
•      Panel Mount Liquid Filled Stainless Steel Pressure Gauges
•      Panel Mount Flow Meters
•      Pressure Control Valves
