Mobile Reverse Osmosis 300 GPD | TR-300

Name: Mobile Reverse Osmosis 300 GPD | TR-300
SKU: TR-300
Availability: InStock

Brand: Ampac USA

Product Code: TR-300

Made in USA

Be the first to review this product

Download Attachment(s):

Details

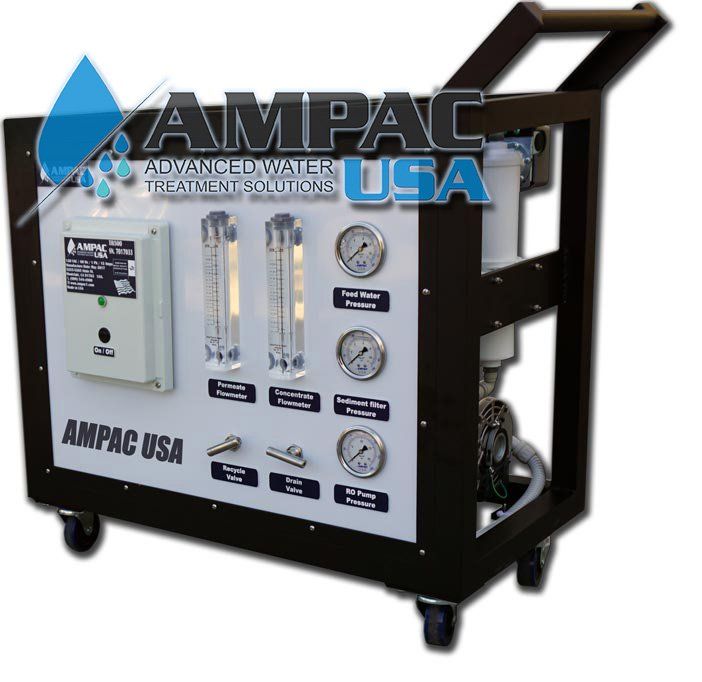

The AMPAC USA™ Emergency Portable Reverse Osmosis 300 GPD | TR-300 Unit that has been specifically designed for Disaster Preparedness Applications, where large amounts of pure water are required at the cheapest running costs.
The TR-300 will Produce up to 12.5 GPH (Gallons per Hour) of Pure water

Standard Features:

Production GPD: 300 Gallons Per Day
Production LPD: 1350 Liter Per Day
4” x 10” Sediment Pre-Filter 20 Micron
4” x 10” Carbon Block Pre-Filter 5 Micron
Rotary Vane High-Pressure Jet Booster Pump with Safeguards
4" x 20" Activated Coconut Shell Post-Filter to improve Taste, Odor, and Clarity
Ultra-Violet Disinfection Sterilizer to sterilize pure water output
Stainless steel liquid-filled pressure gauge
Low pressure cut off switch
2.5” x 21” Stainless Steel Pressure Vessels
2.5” x 21” Brackish Water Membrane Elements.
Stainless Steel System Pressure Control
Heave Duty FRP Pressure Vessel
On/Off Main Power Switch
Powder-coated, Heavy Duty Fully Welded Light Cart on Wheels
12 Month Warranty.

System Features:

Frame	Powder Coated One Piece Aluminum Dolly
Membranes	(1) ea TFC 2.5" x 21"
Vessels	2.5" x 21" FRP
Pump	Procon Rotary Vane with Safeguards (SS option)
Gauges - Glycerin Filled	Booster Pump PSI
Valves	System Pressure
Switches	Low-Pressure Cutout, High-Pressure Cutout
Electrical	110 or 220 V, 50 or 60 Hz, 1 phase
Motor	1/3 Hp - 1725 rpm
Connections	1/2" Quick Tubing Connectors
Capacity per US Gallon	12.5 gal per hr - 300 gals per day
Capacity per Liters	56.2 Liters per min - 1350 Liters per day
Operating Pressure	170 - 225 psi
Typical Recovery	40% - 75%
Typical Rejection	99.2%
Max Feed TDS - Hardness	2500 ppm - 15 grains For Municipal Water Design
Max Feed TDS - Hardness	10,000 ppm - 25 grains For Brackish Water Design
Max Feed Temp	113 degrees F
Feed pH Range	3 -11
Max Chlorine	less than 0.1 ppm
Dimensions	24" wide x 28" deep x 34" ht.
