Mobile Seawater Desalination Watermaker System | SW100K-LX
Brand: Ampac USA
Product Code: SW100K-LX
Made in USA
Make of System:

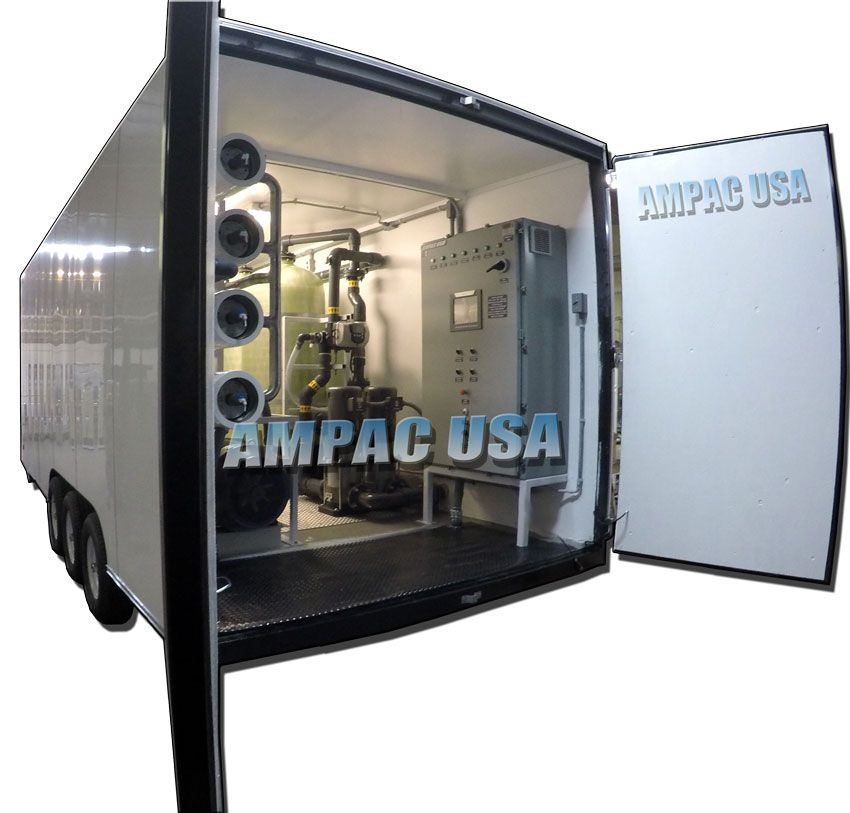

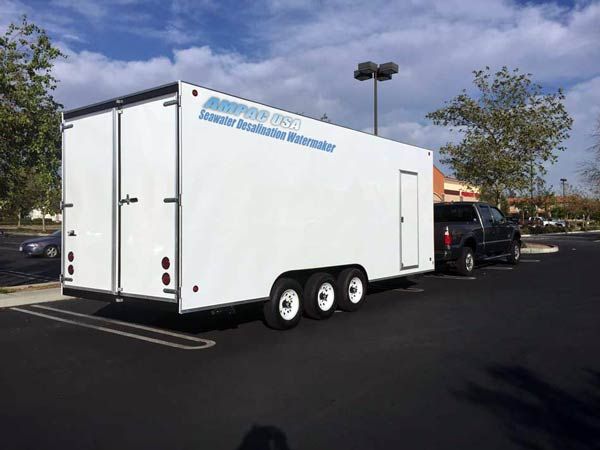

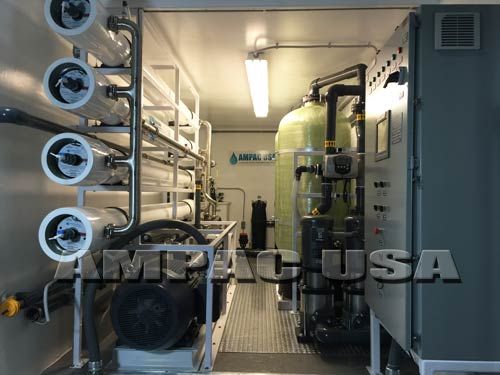

The AMPAC USA Mobile Seawater Desalination Watermaker System - SW100K-LX is a Fully Automated Turnkey System. This Mobile Seawater Desalination Watermaker is capable of producing 100,000 GPD (Gallons per day) (387m³/day), including Pre-Treatment, Seawater Desalination Reverse Osmosis Process, Post Treatment, and On-Demand Delivery to Point of Use. This Mobile Seawater Desalination System is fully built in a 3 Tandem Axle Trailer using good industrial practice and following manufacturer’s guidelines for every component as follows:

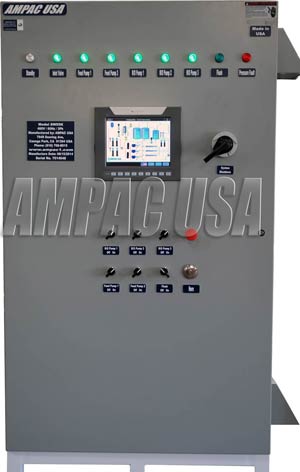

Programmable Logic Controller (PLC): This AMPACUSA Seawater Desalination Watermaker is equipped with a Programmable Logic Controller featuring an integrated 10 inches Full-Color Graphic Touch Screen Operator Interface.
All operating conditions and process status are simultaneously displayed on a single process diagram display screen. The operator interface is virtually menuless, making it easy to locate and adjust all time delays and process set points.
To view specific set point and control options for any piece of equipment simply touch the corresponding image on the graphic screen and all options appear. To return to the main process display, simply touch the "Main" button. This operator interface is conveniently located on the front of the main NEMA 4X Rated control Enclosure. Depending on the control options selected, the controller is capable of displaying influent, concentrate and permeate flows, influent concentrate and permeate Salinity (TDS/Conductivity), percentage of salt rejection, percentage of water recovery, concentration factor, membrane flux and specific flux rates, water temperature, system operating hours, individual run times for each motor and valve, System flow, user defined flow, previous 24 hour flow, and today's running flow totals for influent, concentrate and permeate lines.
The PLC also monitors Low and High Pressure Switches, Tank Levels, and Pre-Treatment Equipment. Data logging is provided for all monitored system variables (i.e. pressures, flows, TDS/Conductivity, pH, temperature & etc.) Multi-level security log In ensures that only qualified personnel is able to make changes to operating set points. If secure internet connectivity is provided the system may be remotely monitored and operated from anywhere on the planet. In addition, all trend data is also remotely accessible.

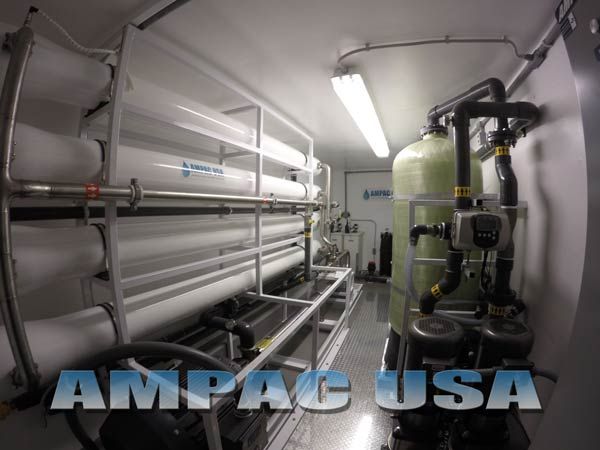

Multimedia Carbon Pre-Filter: Multimedia Pre-Filter will remove any excess Chlorine injected earlier, adjust pH and eliminate any excess bacteria. Since Multimedia filter has to backwash with raw water, therefore, rinse step has been provided in backwash sequence. The filters will automatically backwash, based on timer control.
Spin Down Pre-Filter: A Manual Flush Clear See Through Seawater Strainer with a cleanable Mesh Screen filter for ultimate corrosion resistance and large particulate removal. Sediment Pre-Filter: Sediment Pre-Filter provides higher flow rates while removing dirt, sand and sediment from your water at high capacity.

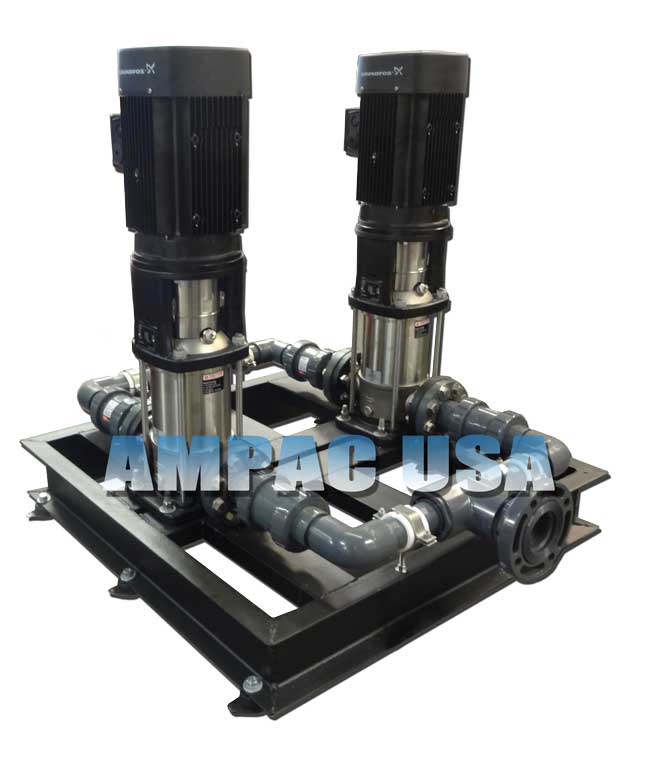

On-Demand Feed Supply Pump: Those Pumps are designed to supply the Watermaker with Seawater stored previously in a Settling Tank with the Required Flow and Pressure,
Those pumps are Multistage 316L Stainless Steel Jet High-Pressure Pumps with safeguards. One set on Variable Frequency Drive, and the second on a pressure sensor.
Those Pumps are well known for their reliability and durability. They are also equipped with a shaft seal and bearing system that can withstand extreme heat and friction for longer periods of time which makes them more reliable and forgiving if they run dry.

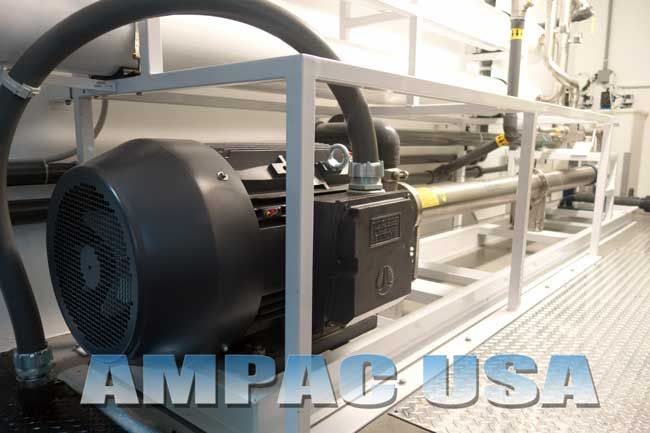

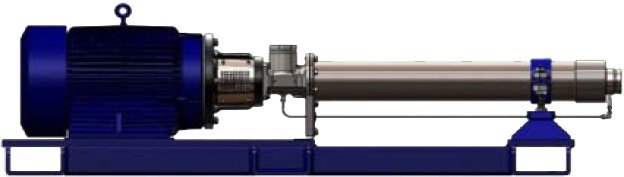

High-Pressure Plunger Pump:
These Triplex Plunger Pumps are designed for the Seawater Desalination industry, resulting in pumps that deliver higher pressure and increased reliability, in fact, it will Boost the Seawater Pressure up to 1200 PSI to ensure the best Desalination Process. A Motor Soft Start is Standard on all larger Watermakers from 4500 GPD and up that reduces start-up power by 60%.
pH Neutralizer Alkaline Post-Filter: After the Desalination Process, the pH of the permeate (potable) water is expected to be in the range of 5.0 this is rather, acidic. This Post-Filter will adjust the pH level to Neutral 7.0 by Re-Mineralization right at the point of delivery.
Half Micron Ceramic Post Filter: In Many Locations of the world, Water may have contaminants which may affect the Watermaker, Ceramic Post Filters are designed to remove Particles from the water but leaves oxygen and mineral contents unchanged, which gives water it's spring-like freshness and taste. Pathogens of the most varied diseases which are reliably filtered from the water include; cholera, ecoli, typhus, dysentery, cryptosporidium, amoebic colibacillose or bilharzia, anthrax spores among others. Ceramic filtration technology is often called "dead-end filtration” and "depth filtration".
Ultra Violet Sterilization Light: As a Final Stage, Ultra Violet Disinfection is introduced as Microorganisms in water can cause a multitude of health problems. Ultraviolet System is the natural way to disinfect water. UV light penetrates and destroys the harmful organism, disinfecting the water.
Noise Reduction: All Ampac USA Watermakers comes equipped with an Accumulator Pulsation Noise Dampener to reduce noise and vibration to acceptable Decibel Noise levels.
Monitors:
All our Watermakers comes with the following Instrumentation Monitors: Stainless Steel Glycerin Filled Pressure Gauges: Installed after each Stage to monitor Pressure at every step of the desalination process.- Visual Flowmeters: Those Flowmeters are installed to monitor Productivity Permeate and Concentrate.
- Salinity Monitor: Shows actual Product Water Quality, an Essential Tool for Product Water Monitoring.
- Hour Meter: To maintain accurate logs of operation hours and keeping schedule preventative maintenance.
- Temperature Monitor: To keep accurate logs of production capacity versus temperature of feed water supply.
Safety Features:
- All Ampac USA Watermakers are equipped with Low Pressure Sensors for failsafe operation.
- All Ampac USA Watermakers are equipped with High Pressure Diverter Valves for Operator Saftey.
- All Terminals are shielded and all high voltage components covered for end-user safety.
- All Electrical Components are UL / CE Certified and enclosed in a NEMA4X Rated Enclosures.
- All Water Quality Components are NSF Approved for Drinking Water Applications.
Service & Maintenance:
- Ampac USA Watermakers are tested for tougher conditions and QA Certified by the factory.
- Ampac USA Watermakers are shipped from the factory ready to install and function.
- A Comprehensive and Detailed Owner's Operation & Maintenance Manual in included with every Watermaker.
Production Based on the Following Feed water Conditions:
| Water TDS | < 45,000 ppm |
| Recovery | 30% |
| Rejection | 98% Average |
| Temperature | 25º Celsius |
| Pressure | >10 psi |
| Electrical | 380V/460V/600V 50Hz/60Hz / 3 Phase power |
| Production | Over a 24-Hour Period. |
