ROWPU SW5000 (5000GPD/19000LPD)

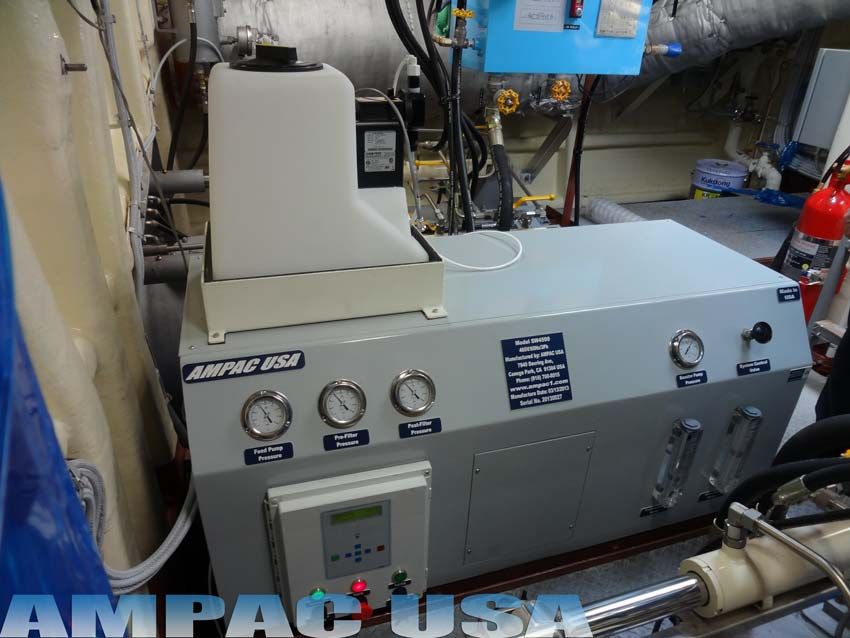

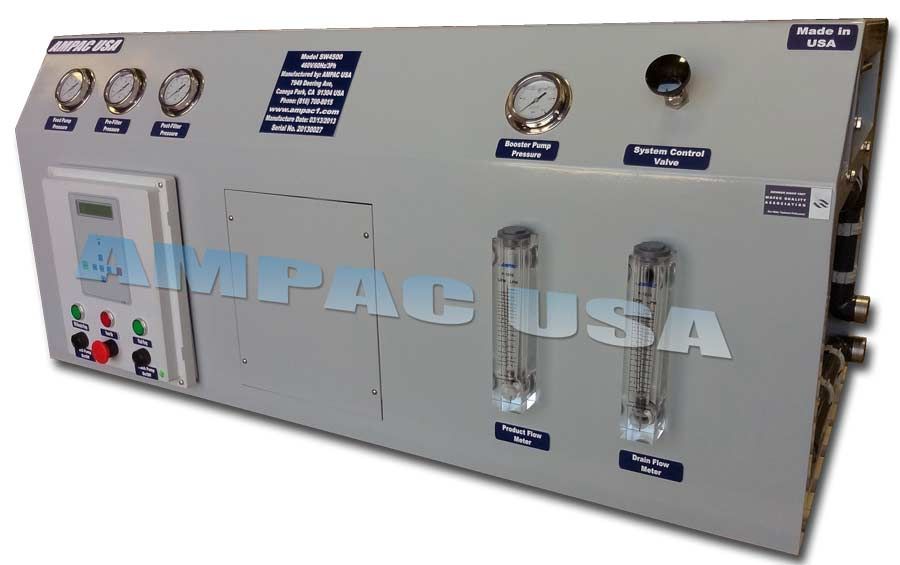

The Ampac USA Military Sea Water Desalination 5000GPD (Gallons per Day) / 19,000 LPD (Liters Per Day), ROWPU SW5000-ML
Navy Marine Based Watermaker System is a minimum power watermaker engineered for Heavy Duty Continuous use applications with a minimum monitoring for the Navy and Miltary Applications, This watermaker, also known as Military Water Purification System, is a horizontal one-piece frame configuration with internal High-Pressure Booster Pump for ease of use in compact locations. The super quiet SeaPro Watermaker is built very compact to fit from the hatches of the smallest Navy Patrol Boats, and features automatic operation and is easy to use with a Start and Stop control. It serves as an efficient fresh water supply from the sea, ideal for small power Military Power Boats, All components within the frame are readily accessible for easy maintenance. This unit is designed to fit in tight places.

Standard Features:

Major Components:

• Smart on Demand Feed Supply Pump
• Sand Separator With Automatic Flush Valve
• 4” x 20” Sediment Pre-Filter 5 Micron
• 4” x 20” Carbon Pre-Filter 5 Micron
• Inlet Actuator Valve with Bypass
• High Pressure Plunger Pump w/ safeguards
• Stainless Steel Noise Damper to reduce Noise and Vibration
• Stainless Steel Pressure Relief Valve
• 4” x 40” FRP High-Pressure Vessels
• TFC 4” x 40” Membrane Elements
• 10” pH Adjust Carbon Post Filter
• 10” Ceramic 0.05 Micron Post Filter
• 12 GPM (Gallons per Minute) Ultra Violet Disinfection Sterilizer.
• Powder Coated Welded Aluminum frame will conform to AISC Manual of Construction

Instrumentation:

Automatic Operating Programmable logic controller UL/CE Approved with:

• Smart Relay
• Delayed start-up of high-pressure pump
• Inlet Solenoid Valve Control
• Low & High Feed Pressure Switches
• Supply Pumps Controls
• R/P Storage Tank Full Pump on/off
• Auto Flush Cycle
• Pre-Treat Lockout
• TDS Water quality Monitor for Permeate Water Quality
• Temperature Monitor with LCDE Display
• Hour Meter
• Complete Panel for Easy Controls
• Stainless steel liquid-filled pressure gauges
• Permeate and concentrate flow meters
• Anti-Scalant Injection System including Tank, Pump Mixer and Injector
• Low pressure cut off Sensor Switch
• Stainless Steel System Pressure Control Valve
• High Pressure Diverter Valve
• On/Off Main Power Switch
• On/Off Feed Pump Switch
• On/Off High Pressure Pump Switch.

---

Design Basis:

System production is based on the following conditions:

Ship Motion:

Key Features:

• AC power or as per Project Requirement
• One Button Start-Stop Operation
• Energy Efficient, low amperage per gallon of product water
• Quiet Operation.

System Pumps Included:

• Smart-on Demand Suction Supply pump, will pull the sea water from any storage tank or directly from the sea.
• Exclusive high efficiency booster pump for extended pre-filter life.

Noise Reduction Features:

• Noise Pulsation Dampener Included
• Smooth running and extraordinarily quiet.
• Vibration isolation mounts included.

Materials

• Frame Fully Welded with Diamond Plate Base, built from 1/4" Gauge Very Ridgid Aluminum, then Double Powder Coated will prevent corrosion.
• Stainless steel exterior and interior pressure gauges and Valves for accurate measurement and control of water maker functions.
• Heavy Duty Fiberglass Reinforced High Pressure Membrane Vessel is stronger and eliminates corrosion.

Safety:

The equipment and system are designed considering minimizing the hazard. Countermeasures against the system hazard are as follows:

Electrical Safety Devices:

• Systems are equipped with a 3 Pole Sensor Breaker
• Instrumentations are equipped with a Single Phase Breaker and 2 Fuses
• Unique Low Voltage Control Circuitry, shielded terminals, & covered high voltage components for end-user safety.
• Alarm Horn Alarm Conditions: Low feed pressure & High permeate conductivity
• Unit Shutdowns include:
• Low feed pressure
• Pretreatment filters in backwash
• Product storage tank full
• High permeate conductivity

Water Safety device:

• Low Pressure Sensor
• A failsafe High Pressure Product Water Diversion Valve Included

Monitoring and control devices for system safety:

• LCD Display Screen showing Conductivity, Hour Meter and Temperature
• On-Off Push Buttons
• Panel Mount Liquid Filled Stainless Steel Pressure Gauges
• Panel Mount Flow Meters
• Pressure Control Valves

Service & Maintenance:

• Shipped from the factory ready to install and function.
• Complete installation kit included along with a detailed Owner's Operation & Maintenance Manual.
• Worldwide Service and Sales Network for immediate attention regardless of location.
• Technical service dedicated to excellent system performance.

Stage 1: On-Demand Feed Supply Pump to pull the Seawater from the Seacrest on Board.

Stage 2: Stainless Steel 316L Sand Separator with an Automatic Flush Valve for Silt and Muddy Areas down to 5 Micron

Stage 3: Five-micron Sediment pre-filter that reduces sediment, sand, silt, and rust particles that may be in your water supply down ti 5 Micron.

Stage 4: A heavy duty Five Micron Lead, Chemical and Organic reducing Carbon Block Pre=Filter (LVOC). This specially formulated block is capable of reducing lead as well as harmful Volatile Organic Chemicals. These water contaminants comes from a variety of sources including localized use of herbicides and pesticides, gasoline or oil spill.

Stage 5: Injection of Anti Scalant solution is included to prevent the silica scaling, CaC03 and CaS04 in the RO membranes, consisting of Antiscalant tank, metering pumps, tank mixer and tank level switch.

Stage 6: Improved FILMTEC™ seawater reverse osmosis elements offer the highest productivity while maintaining excellent salt rejection. FILMTEC SW membrane elements have the highest flow rates available to meet the water demands of both sea-based and land-based desalinators. FILMTEC SW elements operate at lower pressure to reduce cost and operating expenses.

Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available.

Stage 7: Extruded activated carbon filter consist of virgin activated carbon powder, a thermoplastic binder, and specialty adsorbents such as zeolites oxidizing filtration media. The filters are manufactured as continuous lengths of rod, tube, slab, flexible flat sheet, or as other complex shapes using a proprietary solid-state extrusion process. The resulting products are highly porous and extremely uniform, providing high-performance adsorption and particulate reduction at low flow resistance when fabricated into finished filter elements.

Extruded activated carbon filters meet exacting performance requirements and/or claims, and specific models are registered as meeting the requirements of NSF/ANSI for VOCs and THMs reduction, particulate, cyst, turbidity, lead reduction, chlorine taste and odor reduction, and other requirements relating to purity and safety of their materials of construction.

Stage 8: 0.5 Ceramic Post Filter This Post-Filter is a self-sterilizing ceramic locked with bacteriostatic silver. The candle filter has an absolute rating of 0.5 micron, filtering a wide range of contaminating particulates. Additionally, it eliminates E. coli, cholera, salmonella and more. It is NSF certified for Standards 42 & 53, Excellent performance is Reliability after the Sea Water Desalination Process.

Stage 9: Ultraviolet disinfection is a means of killing or rendering harmless microorganisms in a dedicated environment. These microorganisms can range from bacteria and viruses to algae and protozoa. Ultra Violet disinfection is used to disinfect and sterilize Permeate Product Water after the Desalination Process. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals. UV treatment systems are also extremely cost efficient!

The Ampac SeaPro™ Sea Water Desalination Water Maker is the next generation Turnkey system designed for Commercial Marine and Navy Applications with internal High Pressure Booster Pump for ease of use in compact locations. Featuring a simple interface, the SeaPro Plus™ can be monitored via the control panel or the on-deck Remote Control. All components within the frame are readily accessible for easy maintenance.
