Industrial Reverse Osmosis 20,000 GPD | 3.18m3/hr
Brand: Ampac USA
Product Code: AP20K-LX
Made in USA

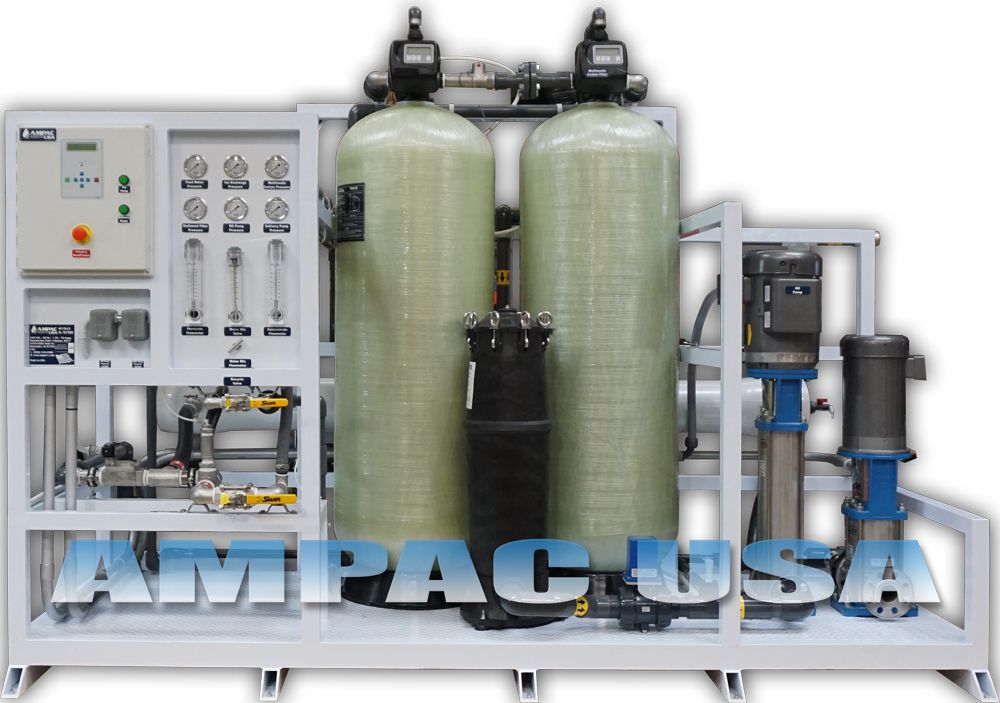

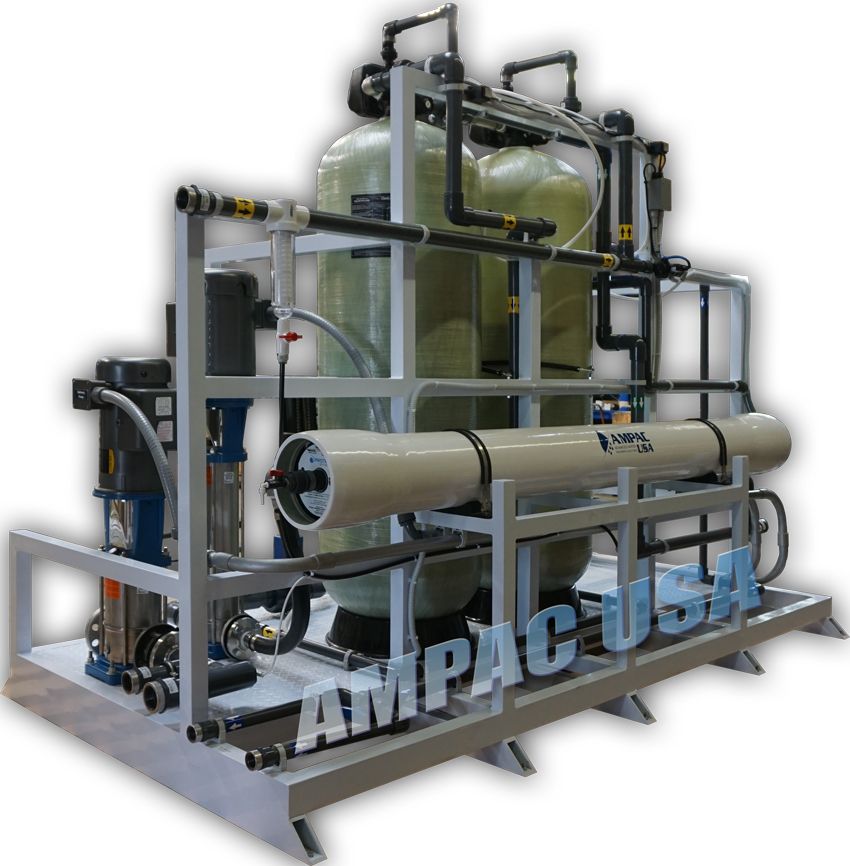

The AMPAC USA Fully Equipped LX Series Industrial Reverse Osmosis 20,000 GPD| AP20K-LX is designed and custom-built to meet our Client's requirements and specifications for reliable higher purity water and higher efficiency for a variety of manufacturing processes. Please call AMPAC USA to find the Reverse Osmosis system that works best for your process or application.
Standard Features:
- Spin Down Screen Filter with Manual Flush Valve
- Ion Exchange Water Softener w/auto-backwash valve
- Multimedia KDF-Catalytic Carbon-Poly Phosphate Pre-Filter w/auto-backwash valve
- Twin 4” x 20” Big Blue Sediment Pre-Filter 05 Micron in Parallel
- Horizontal Multi-Stage High-Pressure Jet Pump with Safeguards for Brackish Water Application
- 8” x 40” FRP Pressure Vessels
- 8” x 40” TFC Membrane Element
- Smart-on-Demand Delivery (Distribution) Pump to Point of Use 2HP.
- 4” x 10” Big Blue Carbon Post-Filter 05 Micron
- Ultra Violet Sterilizer
- Powder-coated, Welded Aluminum Frame with Aluminum Diamond Plate.
Instrumentation:
- Automatic Operating Programmable logic controller UL/CE Approved with:
- Smart Relay
- Delayed start-up of the high-pressure pump
- Inlet Solenoid Valve
- Low & High Feed Pressure Switch Controls
- Supply & Delivery Pumps Controls
- R/P Storage Tank Full Pump on/off
- Auto Flush Cycle
- Pre-Treat Lockout
- TDS/Conductivity Monitor
- Temperature Monitor
- Hour Meter
- Complete Panel for Easy Controls
- 4 Count Stainless steel liquid-filled pressure gauges
- Permeate and concentrate flowmeters
- Inlet Solenoid Valve with Bypass
- Low pressure cut off Pressure Switch
- Stainless Steel System Pressure Control
- Stainless Steel Recycle Pressure Valve
- On/Off Main Power Switch.
Optional Features:
- Anti-Scalant Dosing System (Hard Water Present Conditions)
- Chlorine Dosing System (Iron Manganese Present Conditions)
- Smart-on-Demand Supply Pump to increase Feed Water Pressure 1HP
- Ozone Generator Disinfection System Installed on Circulation Loop.
- Silica quartz Pre-Filter w/auto-backwash valve
R/O System Features:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Make of System: Fully Automated Turnkey Brackish Water Reverse Osmosis System including pre-treatment Modules and Reverse Osmosis System fully built on a Powder Coated Welded Aluminum Skid with Diamond Plate Base using good industrial practice and following manufacturer’s guidelines for every component.
Make of System: AP20K-LX
Origin:: Made in the USA
Backwash & Regenerations Cycle: Ion Exchange System Cycle on Metered Basis, Multimedia System Cycle on Timer Basis and can be Adjustable up to 120 Minutes at any given time.
Delivery Terms: The system is ready to be packaged and shipped, on average 2-3 Weeks from the day of receipt of the purchase order.
System production is based on the following conditions: 10,000ppm NaCI feed water, 77°f/ 25°c Operating temperature, and 3.0-11.0pH Range. Actual feed water analysis may require special consideration affecting final design and pricing.
*Prices are subject to change without notice.
