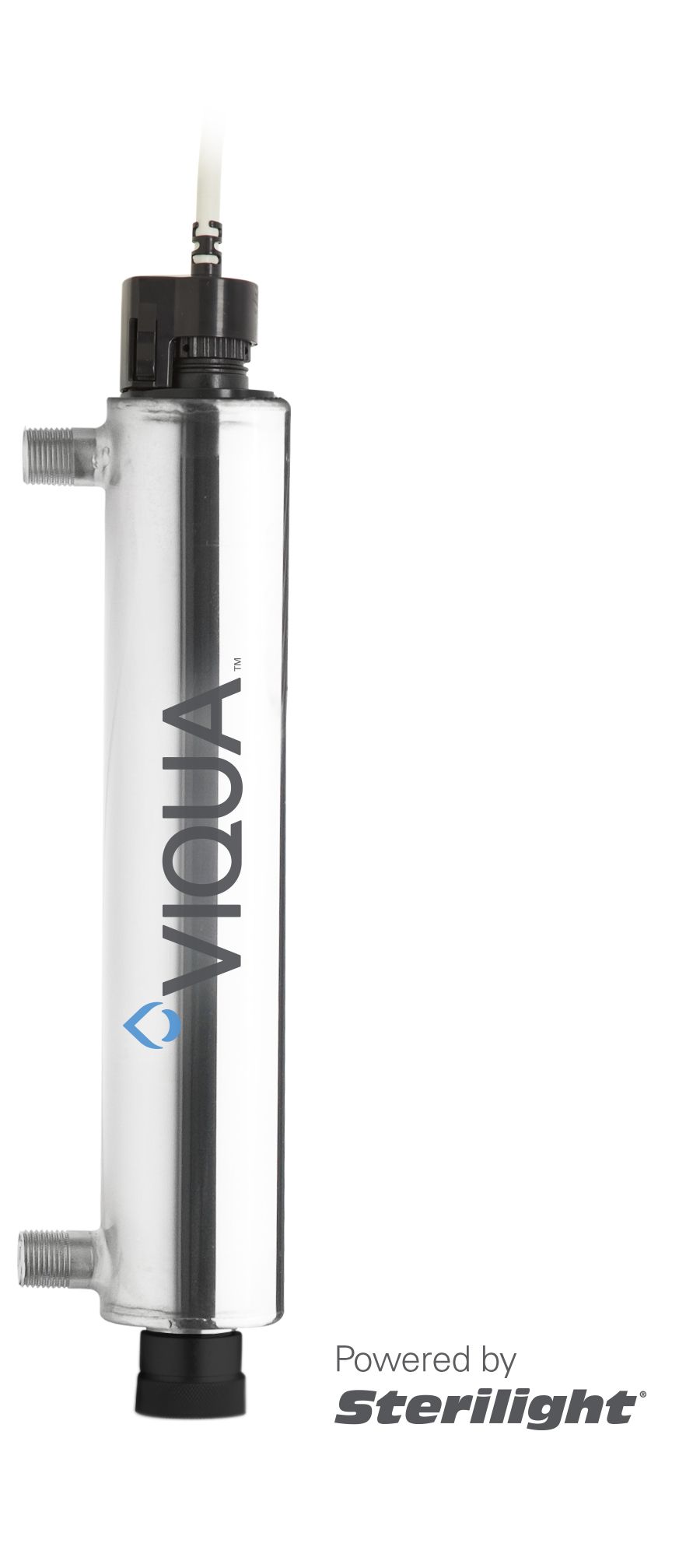

Silver Series UV Water Sterilizer Powered By Sterilight 3 GPM
Viqua S2Q-PA (120v) | Ultra Violet disinfectant Silver Series UV System is the longtime "Flagship" of the Sterilight UltraViolet product line. It is a low maintenance system and is easily serviced to ensure best drinking water quality.

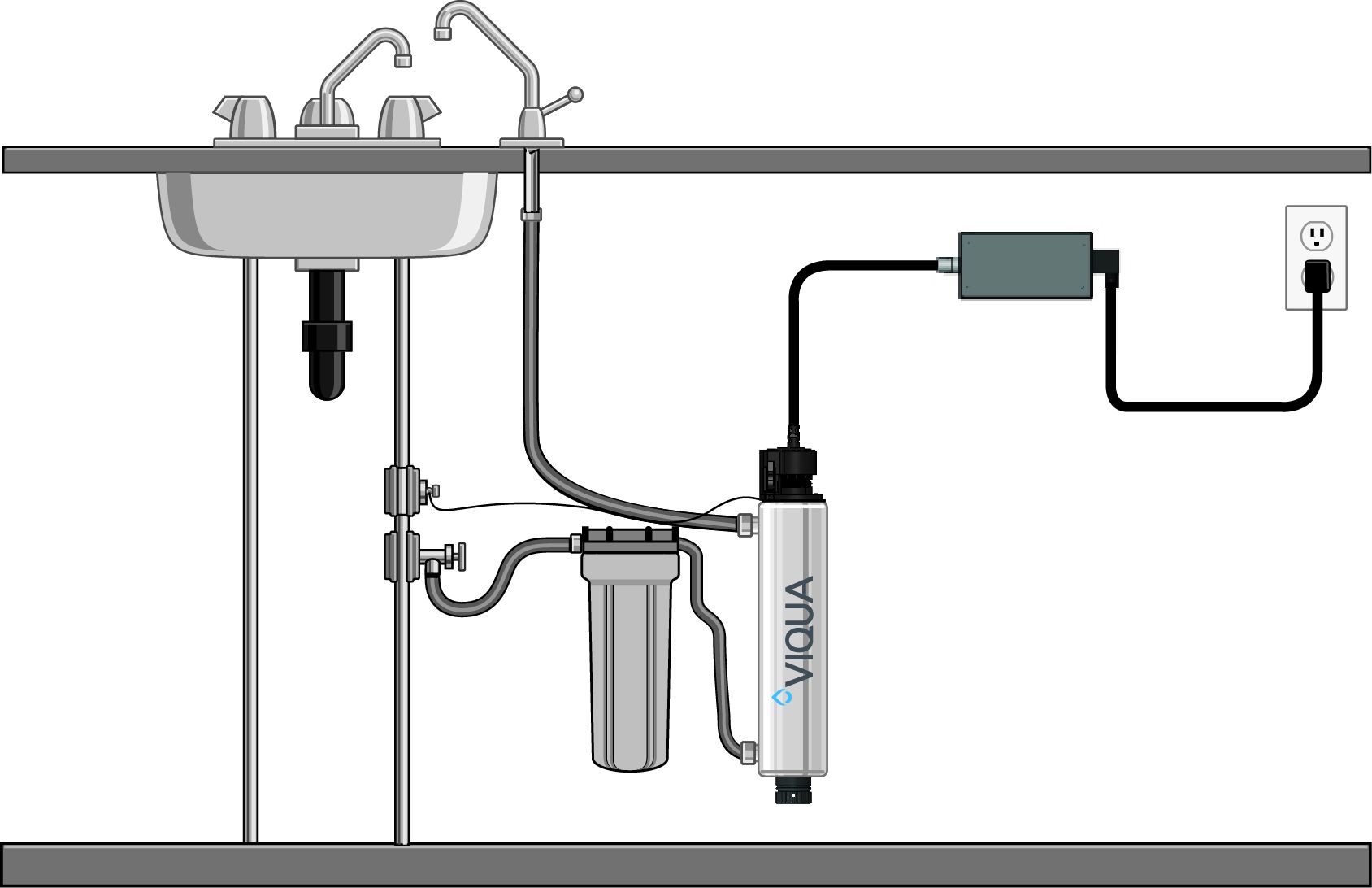

- Compact point-of-use (single tap) UV disinfection system for recommended flow rates up to 3 GPM (11 lpm)
- Features “countdown” timer display and lamp change reminder
- Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock molded lamp connector, audible alarm & power-on indicator
- The compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
- Open-end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & Cryptosporidium) at rated flow
- Hard glass, low-pressure mercury vapor lamps with high isolation pin design
- Nature's way to protect your water without the addition of harmful chemicals
- Easy servicing - no need to disconnect water flow to change UV lamp
- Seven-year warranty on reactor chamber for unparalleled protection
- Includes mounting clamp
- CSA and CE compliant
Operating Conditions
| Flow Rate (16mJ/cm2 Dose) | 5 gpm |
| Flow Rate (30mJ/cm2 Dose) | 3 gpm |
| Flow Rate (40mJ/cm2 Dose) | 2 gpm |
| Ambient Temperature | 36-104 °F |
| Operating Pressure Range | 5-125 psi |
Dimensions
| Inlet/Outlet | 1/2" MPT |
| Chamber Length | 17 " |
| Chamber Diameter | 2.5 " |
| Power Supply Dimensions | 7.3"x3.2"x2.5" |
Electrical
| Voltage | 120 V |
| Frequency | 50-60 Hz |
| Power Consumption | 22 W |
General
| Chamber Material | 304 Stainless Steel Reactor |
| Other Features | Visual Power On |
| Warranty | 7 yr for Chamber, 1 yr for lamps and probes, 5 yr pro-rated on all other components |
Replacement Parts:
- Quartz Sleeve (QS-330) - Replace every 24 months or as needed
- Lamp (S330RL) - Replace every 12 months
- Sleeve/Lamp Combo Kit (S330-QL)
