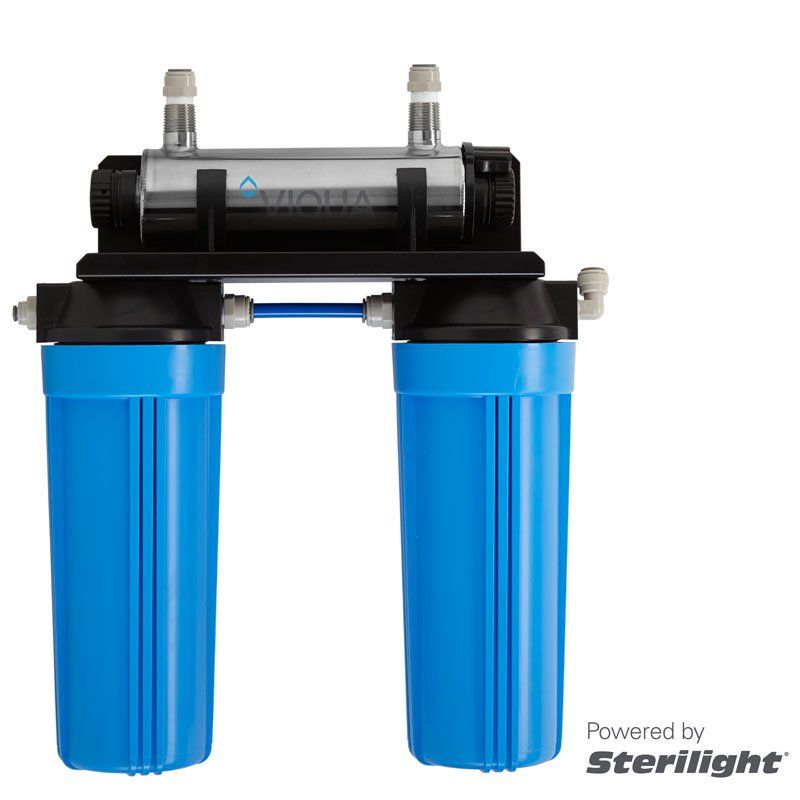

Viqua VT1-DWS Copper Series UV System Powered By Sterilight 1 GPM.

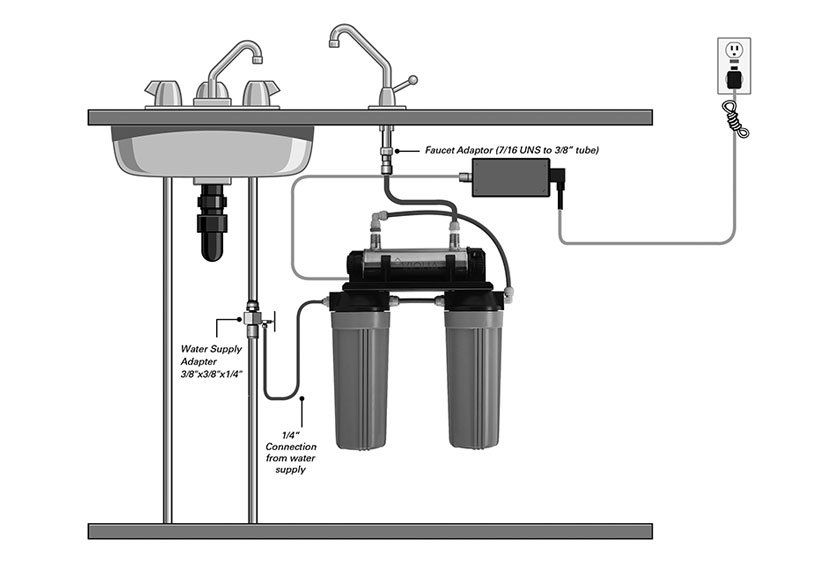

The Viqua Copper Series VT1-DWS Ultraviolet Drinking Water System provides a point-of-use water treatment system with both disinfection and filtration. The VT1-DWS is ideal for point of use applications such as under the sink, in a basement or other locations, depending on available space. Ultra Violet disinfectant System provides the best solution
- Inlet Connection: 1/4" quick connect
- Outlet Connection: 3/8" quick connect
- This compact unit incorporates Viqua Copper disinfection system and two filter housings, all on the same installation bracket
- The Viqua VT1 provides point-of-use disinfection with a flow rate of 1 gpm at a 30 mJ/cm²dose (0.7 gpm if a dose of 40 mJ/cm² is required.)
- This modular system, incorporating the new Copper controller, is ideal for any application requiring a high flow rate in a compact space
- The VT-1 is manufactured with a polished, 304 stainless steel axial flow reactor
- Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the connector can be removed without any additional tools
Operating Conditions
| Flow Rate (16mJ/cm2 Dose) | 2 gpm |
| Flow Rate (30mJ/cm2 Dose) | 1 gpm |
| Flow Rate (40mJ/cm2 Dose) | 0.7 gpm |
| Ambient Temperature | 36-104 °F |
| Operating Pressure Range | 125 max psi |
Dimensions
| Overall Dimensions | 15" x 17" x 16" inches |
| Inlet | 1/4" quick connect |
| Outlet | 3/8" quick connect " |
| Chamber Length | 12.5 " |
| Chamber Diameter | 2.5 " |
Electrical
| Voltage | 120 V |
| Frequency | 50-60 Hz |
| Power Consumption | 13 W |
General
| Number of Lamps | 1 |
| Chamber Material | 304 Stainless Steel Reactor |
| Other Features | Visual Power On |
